Key Components That Turn Water Into Electricity

Hydropower is one of the most reliable and sustainable sources of renewable energy. But have you ever wondered how flowing water turns into the electricity that powers our homes and industries? Behind this remarkable transformation lies an impressive system of engineeringthe hydropower plant.

In this blog, well explore the intricate workings of hydropower plants and break down the key components that make this fascinating process possible. Whether you're an energy enthusiast, an aspiring engineering student, or simply curious about clean energy, this comprehensive guide will help you understand the fundamental principles of hydroelectric power generation.

What Is a Hydropower Plant?

A hydropower plant (also known as a hydroelectric power plant) is an advanced electrical engineering system designed to convert the kinetic and potential energy of flowing or falling water into usable electricity. Most conventional hydropower plants utilize a dam to create a large reservoir, storing vast quantities of water that can be released as needed to generate power. This controlled release ensures a consistent and reliable energy supply.

Lets dive deeper into each part of this incredible, interconnected system.

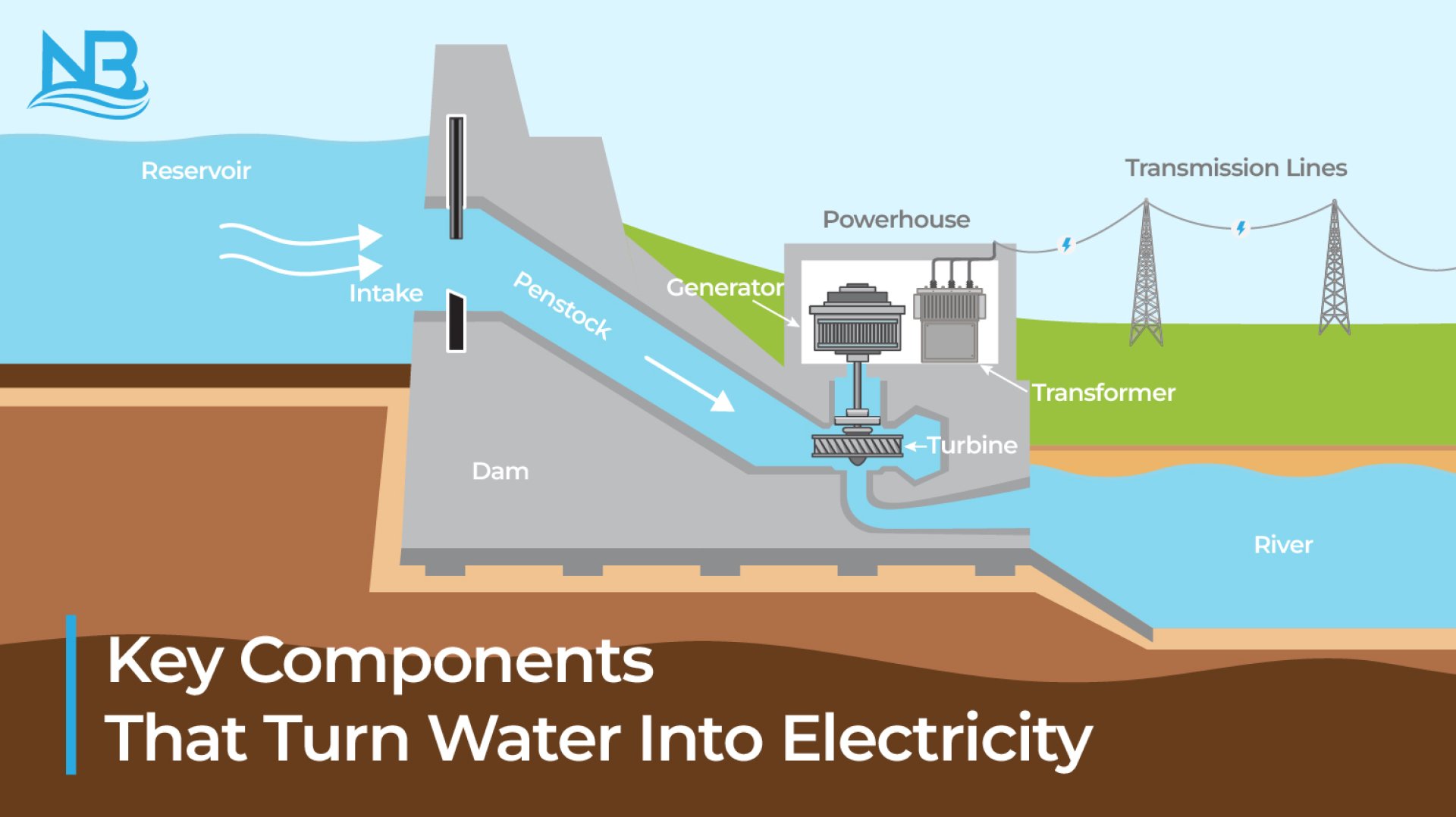

Key Components of a Hydropower Plant

Each component in a hydropower plant plays a vital role in the seamless conversion of water energy into electrical power. Understanding their functions helps in appreciating the ingenious design of these facilities.

1. Dam or Weir

The dam is perhaps the most visible and monumental structure of a hydropower plant. Its a massive barrier built across a river to control and impound the flow of water. By creating a large body of water known as a reservoir, the dam serves several crucial purposes:

• Water Storage: It stores the vast volume of water necessary for continuous power generation, acting as a crucial energy reserve.

• Water Head Creation: It creates a significant difference in water level (known as "head") between the reservoir and the turbine, which is essential for generating the pressure needed to drive the turbines.

• Flood Control: Dams often serve a dual purpose, helping to manage river levels and prevent downstream flooding.

2. Reservoir

The reservoir is essentially an artificial lake created by the dam. It acts as the primary storage facility for the water that will eventually be used to generate electricity. The sheer volume of water held in the reservoir is critical for:

• Consistent Power Generation: It ensures that power can be generated even during periods of low river flow or drought, providing a buffer against seasonal variations.

• Managing Water Supply: Beyond electricity, reservoirs often support other uses like irrigation, municipal water supply, and recreation.

3. Intake

Located at a specific depth within the reservoir, the intake is a precisely engineered gate or channel. Its main function is to allow a controlled amount of water to enter the penstock. The intake system is often equipped with trash racks to filter out debris and prevent it from entering and damaging the mechanical components downstream.

4. Penstock

The penstock is a robust, large-diameter pipe or tunnel that channels water from the intake of the reservoir directly to the turbine. It's designed to withstand immense internal pressure as the water accelerates downhill due to gravity. The primary role of the penstock is to:

• Direct Water Flow: Guide the water efficiently to the turbines.

• Build Pressure: Convert the potential energy of the stored water into kinetic energy and pressure, which is then used to spin the turbine.

5. Turbine

Often considered the "heart" of the hydropower plant, the turbine is a sophisticated mechanical device featuring a series of specially designed blades. As the high-pressure water rushes through the penstock and strikes these blades, it exerts a tremendous force, causing the turbine to spin rapidly. This process directly converts the waters kinetic energy into mechanical rotational energy. Common types of turbines include Francis, Kaplan, and Pelton, each suited for different water heads and flow rates.

6. Generator

The generator is coupled directly to the rotating shaft of the turbine. This critical component takes the mechanical energy from the spinning turbine and transforms it into electrical energy. This conversion occurs through the principle of electromagnetic induction:

• Electromagnetic Induction: As the turbine spins, it rotates a large electromagnet (rotor) within a stationary coil of wire (stator), or vice versa. This relative motion creates a changing magnetic field, which in turn induces an electric current in the coils, thus generating electricity.

7. Transformer

The electricity produced by the generator is typically at a relatively low voltage. To transmit this power efficiently over long distances with minimal energy loss, its voltage needs to be increased significantly. This is where the transformer comes in.

• Voltage Step-Up: The transformer steps up the voltage of the alternating current (AC) to a much higher level, making it suitable for economical transmission through the electrical grid.

8. Powerhouse

The powerhouse is the central building or facility that encapsulates the core operational components of the hydropower plant. It typically houses:

• Turbines and Generators: The main machinery responsible for energy conversion.
  Transformers: For voltage regulation.

• Control Room: Where engineers monitor and manage the plant's operations.

• Auxiliary Equipment: Such as cooling systems, lubrication systems, and safety mechanisms.


It's the nerve center where all the mechanical and electrical processes are coordinated.

9. Transmission Lines

Once the electricity's voltage has been stepped up by the transformer, it is ready for distribution. Transmission lines are the extensive network of high-voltage cables and towers that carry the generated power away from the plant.

• Grid Connection: These lines connect the hydropower plant to the wider electrical grid, distributing power to substations, which then reduce the voltage for local distribution to homes, businesses, and industries.



Why Understanding Hydropower Matters

Understanding how hydropower plants operate provides invaluable insight into the critical role of engineering in sustainable energy production. It serves as an excellent example of how humanity can responsibly harness natures powerful forces in a clean, efficient, and exceptionally reliable manner. As the world transitions towards a more sustainable future, the importance of hydropower as a backbone of renewable energy systems continues to grow.

Hydropower plants are far more than just dams and turbines they represent a remarkable synergy of precision engineering, advanced technology, and natural forces. From the immense reservoir holding the potential energy of water to the intricate dance of the generator creating electricity, every single component plays a critical and indispensable role in delivering clean, renewable energy to our communities worldwide. Their continued operation is vital for a sustainable energy future.
